Eye bolt with ring | A2 | M8265

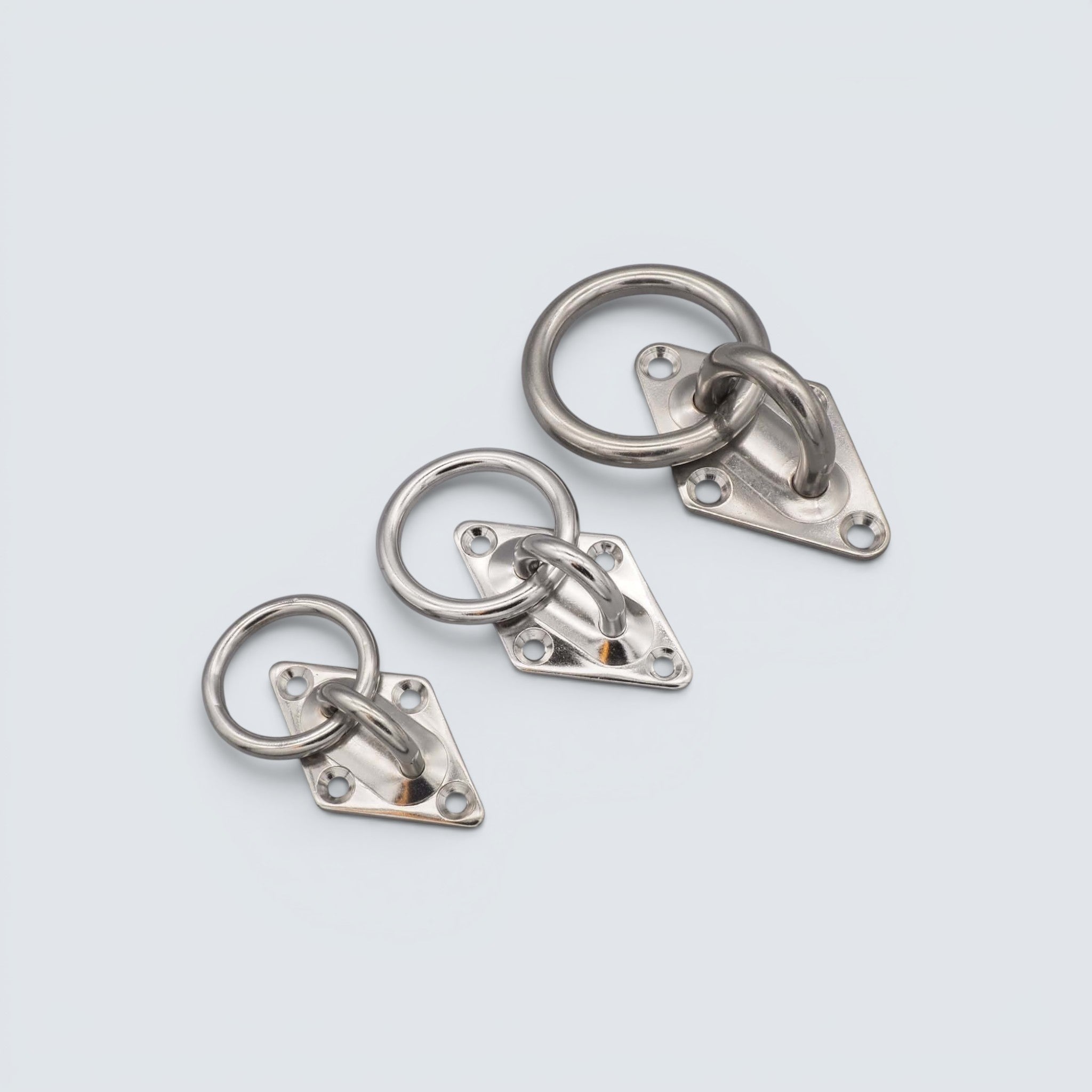

Eye plate with ring in A2 / AISI 304 stainless steel is built to withstand corrosion and maintain strength over a long period. It combines low weight with high breaking strength and is optimized to handle heavy mechanical loads and frequent use. The moving ring in the eye makes it easy to connect ropes, chains, or wires.
AREA OF USE
Perfect for fastening and connecting chains, ropes, or wires outdoors, in storage rooms, garages, and stables, as well as in construction and industrial projects. The moving ring in the eye provides a stable connection without the need for additional fittings. Easy to install with standard tools and requires minimal maintenance even during continuous operation.
TECHNICAL SPECIFICATIONS
- Product type: Eye plate with ring
- Standard: Not specified (standard model)
- Quality: A2 / AISI 304 (stainless steel)
- Material grade: Not specified (made of stainless A2)
- Thread type: Not applicable
- Surface finish: Untreated (natural stainless steel)
- Head shape: Eye with moving ring
- Grip type: Not applicable
FREQUENTLY ASKED QUESTIONS (FAQ)
What characterizes an eye plate with ring in A2 stainless steel?
An eye plate with ring (a plate with an eye and a free-moving ring) is a versatile and strong anchor point for wall, floor, or ceiling mounting:
-
Free-moving ring: The closed ring moves freely in the eye, allowing pulling forces from ropes, chains, or carabiners to automatically angle in the right direction. This reduces twisting and breaking forces on both the mount and the mounting screws.
-
High breaking strength and low weight: The compact mounting plate distributes the load effectively across multiple fastening points, providing an extremely stable anchorage despite its sleek design.
-
Versatile connections: Makes it easy to quickly hook and unhook lines, straps, chains, covers, or wires in both stationary and moving applications.
Why is stainless steel A2 (AISI 304) an excellent material choice?
A2 steel (1.4301 / AISI 304) offers an optimal balance between high corrosion protection and good mechanical strength:
-
Excellent outdoor weather protection: Withstands rain, snow, humidity, and varying temperatures without rusting or weakening over time.
-
Perfect for agriculture, stables, and garages: Resists moisture, condensation, and ammonia gases where typically electro-galvanized fittings break down quickly.
-
Clean and neat finish: Does not discolor the surface, wood, or lines and requires no maintenance to maintain its load-bearing capacity.
How do you mount the eye plate with ring for maximum safety?
-
Use the right screw material: Always use stainless screws (A2 or A4) during installation to prevent galvanic corrosion (contact corrosion) between the screw and the mounting plate.
-
Adapt the fastening to the surface: When mounting in wood, the fitting is screwed with coarse-threaded wood screws into load-bearing timber. When mounting in concrete or brick, use suitable plugs or masonry anchors combined with stainless screws.
-
Even load distribution: Position the mount so that the force is distributed as evenly as possible across all mounting holes in the plate.
