Lifting eye nut | A2 | DIN 582 | CE-marked
A2 stainless steel (AISI 304) lifting eye nuts, also known as eye nuts or ring nuts, are designed for lifting, suspending, and anchoring in both indoor and normal outdoor environments. This product is forged, CE-marked, and manufactured according to DIN 582. It is used where a secure lifting or attachment point with a metric internal thread is required on a bolt, stud, or threaded rod. It is suitable for professional installations where long service life and consistent performance are essential.
The CE marking signifies that the manufacturer certifies that the lifting eye nut meets EU requirements for lifting accessories under the Machinery Directive 2006/42/EC. This means, among other things, that the product is designed and tested for a specified Working Load Limit (WLL), is marked with dimensions, material, and manufacturer for traceability, and is supplied with an EU Declaration of Conformity and user instructions.
The lifting eye nut is screwed onto a protruding thread and provides a secure point for shackles, hooks, chains, or wire ropes. Read more about the difference between forged and cast products.
AREA OF APPLICATION
The product is used in machine construction, building and construction, workshops, the process industry, and the food industry. It is intended for applications where a lifting or anchoring point is required and where the material choice provides the necessary protection against corrosion and mechanical stress. The lifting eye nut is available in thread sizes M6, M8, M10, M12, M16, and M20.
For saltwater, coastal, and chemically demanding environments, acid-proof A4 lifting eye nuts are recommended.
TECHNICAL SPECIFICATIONS
- Product type: Nut
- Product family: Lifting eye nut (eye nut, ring nut)
- Material grade: A2 (stainless steel, AISI 304)
- Standard: DIN 582
- CE marking: Yes, lifting accessory according to Machinery Directive 2006/42/EC
- Manufacturing method: Forged
- Thread dimension: Metric ISO thread, M6–M20 (internal thread)
- Surface finish: Electropolished
- Environment: Outdoor / Indoor
- Unit of sale: Each
FREQUENTLY ASKED QUESTIONS (FAQ)
What is a DIN 582 lifting eye nut?

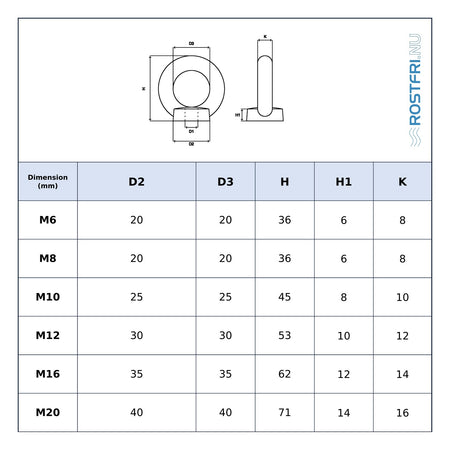

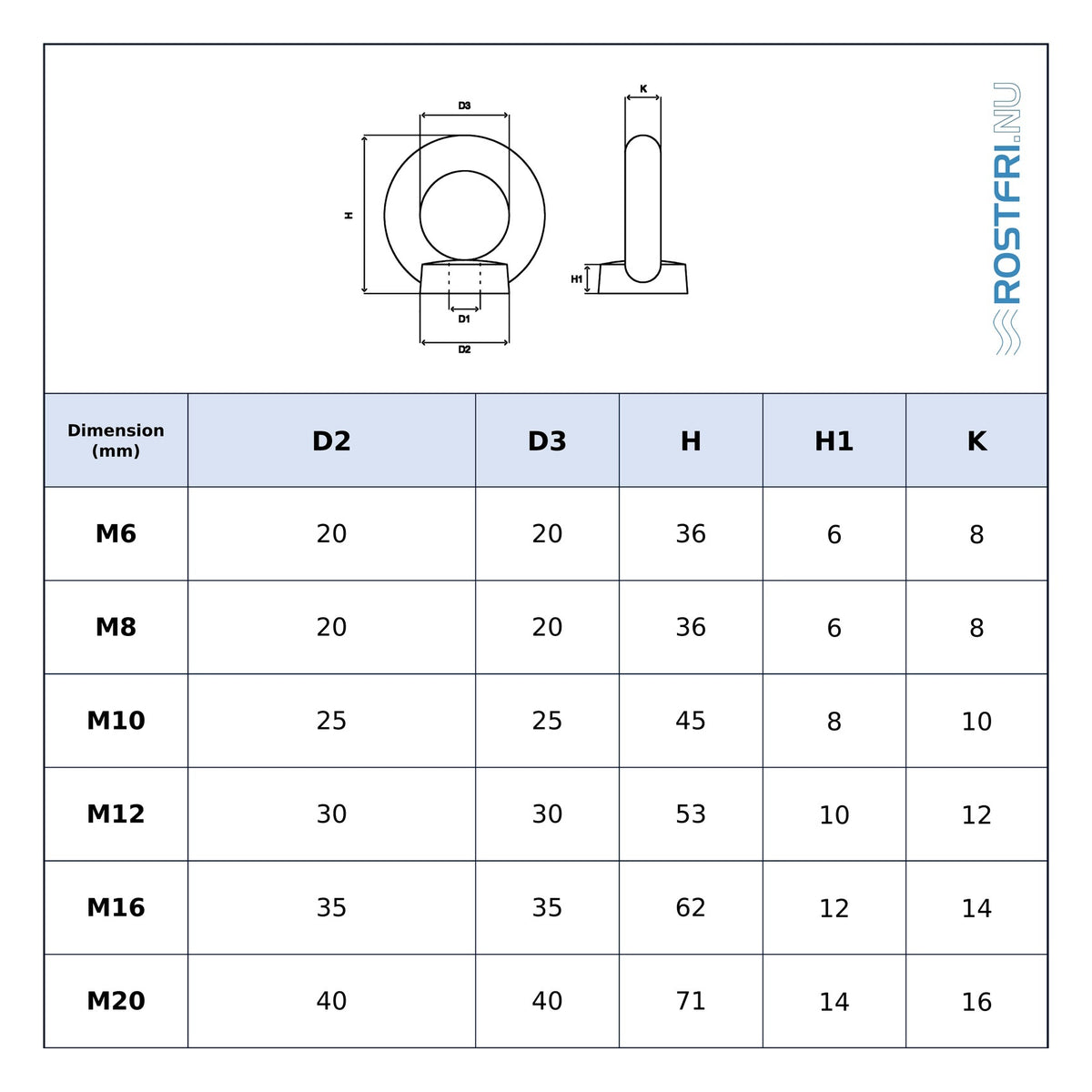

A DIN 582 lifting eye nut is a ring nut with an internal metric thread, a flat collar, and a circular eye. DIN 582 specifies the dimensions, material, and allowed Working Load Limit (WLL) for eye nuts intended for lifting. The eye is normally marked with the thread size, material, and manufacturer.
What does the CE marking on a lifting eye nut mean?
The CE marking indicates that the manufacturer certifies that the lifting eye nut meets the essential health and safety requirements for lifting accessories in the EU Machinery Directive 2006/42/EC. For you as a user, this practically means:
- Specified Working Load Limit (WLL): The product is dimensioned and tested with a safety margin for the load specified for each size.
- Marking and traceability: The lifting eye nut is marked with details such as dimension, material, and manufacturer, ensuring it can be identified and traced.
- Documentation: An EU Declaration of Conformity and instructions for use, installation, and inspection are available.
- Approved for lifting: A CE-marked lifting eye nut may be used as a lifting accessory. An eye nut without a CE mark, such as the cast WS 9582, should only be used for suspension and anchoring, not for lifting.
The CE marking does not replace the requirements for correct installation and regular inspection. Lifting accessories must be inspected before use and discarded in the event of damage, deformation, or worn threads. From January 20, 2027, the Machinery Directive will be replaced by the EU Machinery Regulation (EU) 2023/1230.
What load can a DIN 582 lifting eye nut handle?

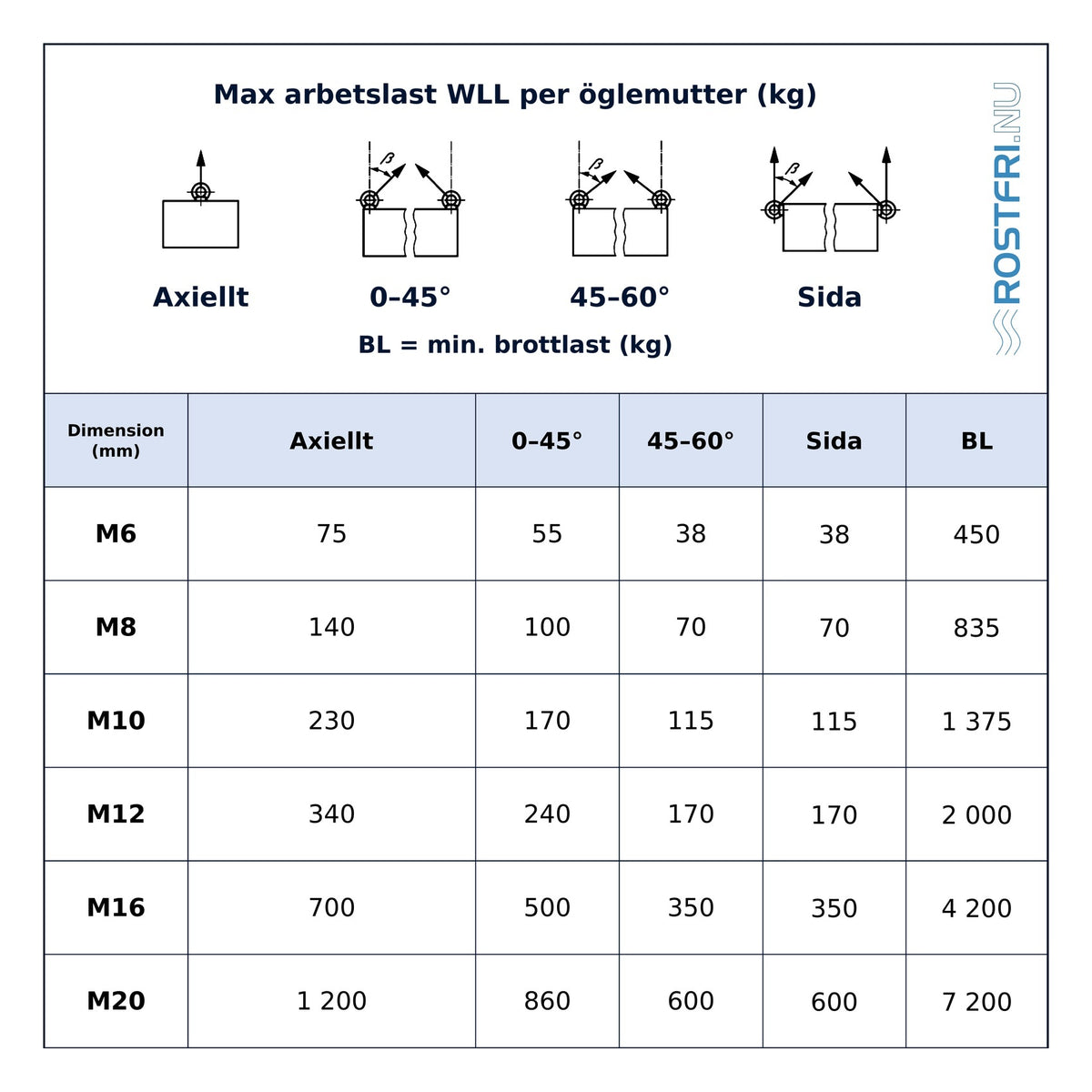

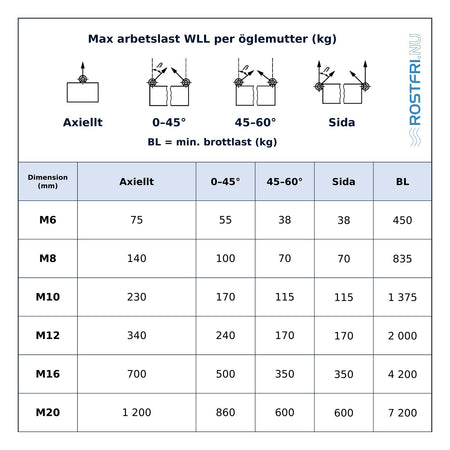

The allowed Working Load Limit depends on the thread size and the direction of pull. For straight axial pull (0°), the WLL is 75 kg for M6, 140 kg for M8, 230 kg for M10, 340 kg for M12, 700 kg for M16, and 1,200 kg for M20. In cases of angled or side loading, the allowed load decreases significantly – see the load table in the product images for values per direction of pull. Always follow the WLL specified for the relevant dimension and angle of pull.
How do I install a lifting eye nut correctly?
Screw the lifting eye nut down completely so that the flat collar rests tightly against a flat contact surface, and ensure that the bolt or threaded rod covers the entire thread length of the nut. The bolt or threaded rod must have at least an equivalent strength rating. For angled pulls, the plane of the eye must be aligned with the direction of pull. We recommend using assembly paste to reduce the risk of cold welding (galling) between stainless steel threads.
What is the difference between A2 and A4?
A4 (AISI 316) contains molybdenum and has significantly better resistance to chlorides than A2 (AISI 304). A4 is known as acid-proof and is recommended for saltwater, coastal environments, pools, and chemically demanding environments, whereas A2 is suitable for indoor and normal outdoor use. A2 is not acid-proof and should not be used in marine environments.
