Home » All products » Metal drill bit set | HSS-G | STEP-X | DIN 338 | 6 pieces
HSS-G metallborrsats med 6 STEP-X spiralborrar enligt DIN 338 i förvaringsask.
HSS-G metallborrsats med 6 STEP-X spiralborrar enligt DIN 338 i förvaringsask.
HSS-G metallborr med STEP-X-spets enligt DIN 338 för borrning i plåt och tunnväggiga profiler.
HSS-G metallborrsats med 6 STEP-X spiralborrar enligt DIN 338 i förvaringsask.
HSS-G metallborrsats med 6 STEP-X spiralborrar enligt DIN 338 i förvaringsask.
HSS-G metallborr med STEP-X-spets enligt DIN 338 för borrning i plåt och tunnväggiga profiler.

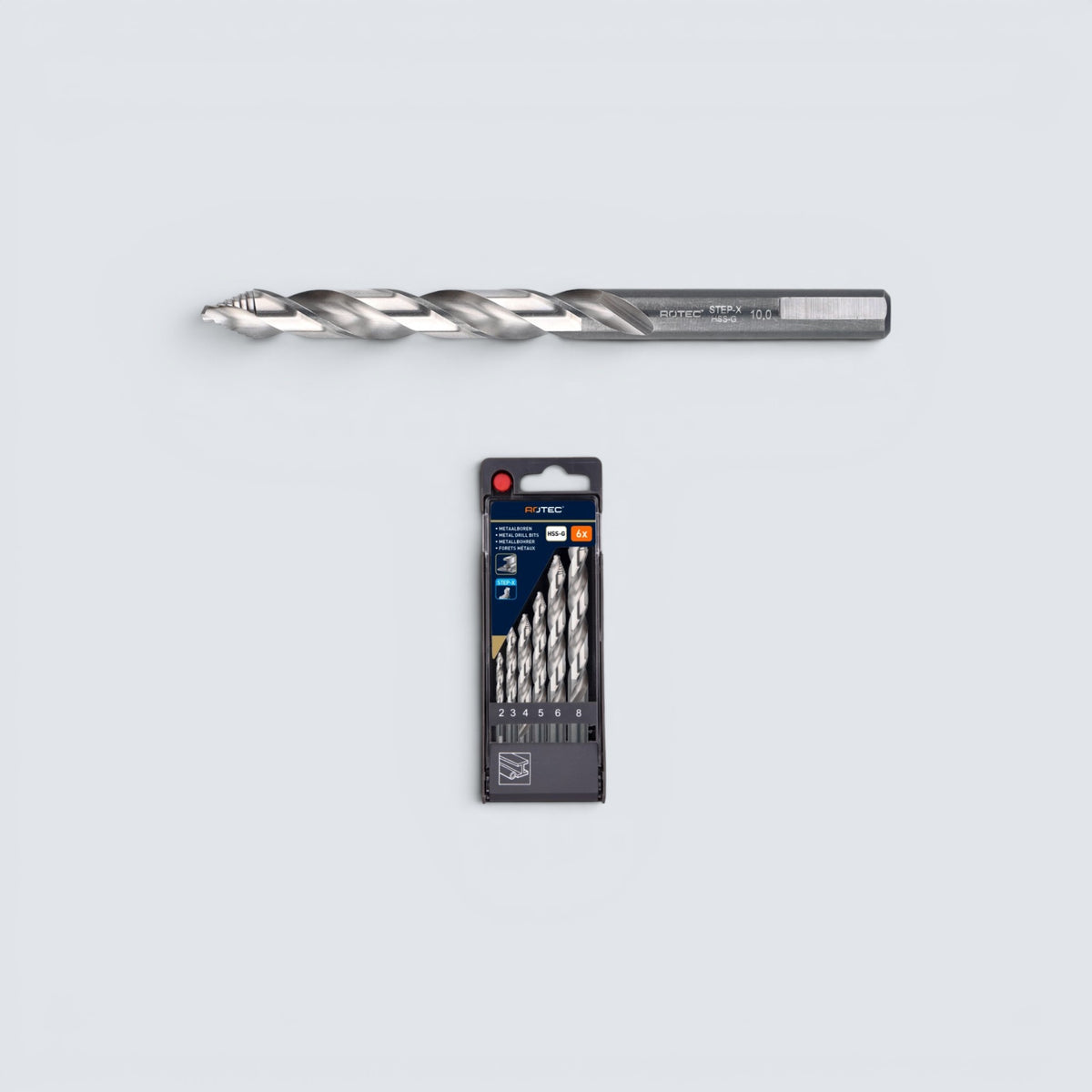

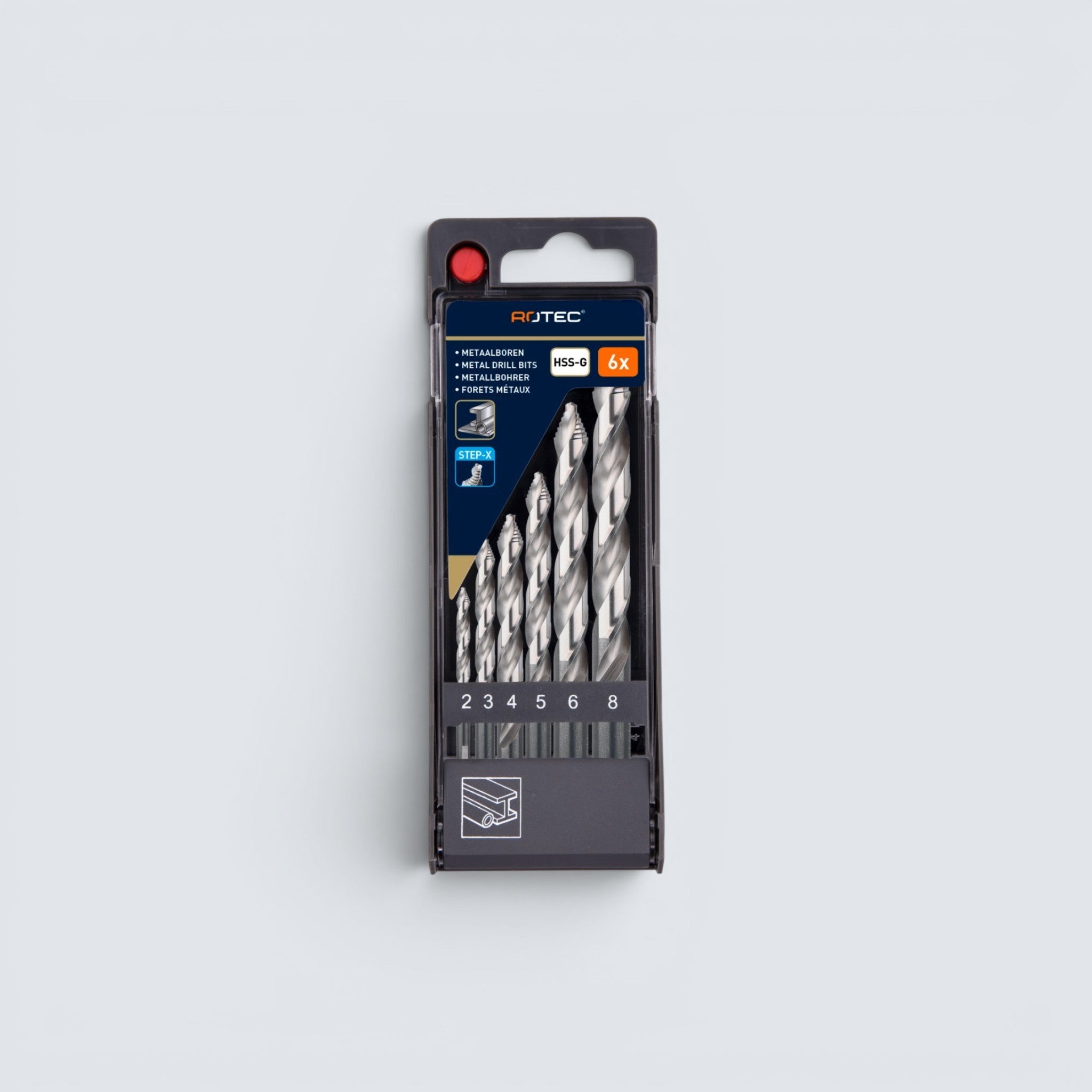

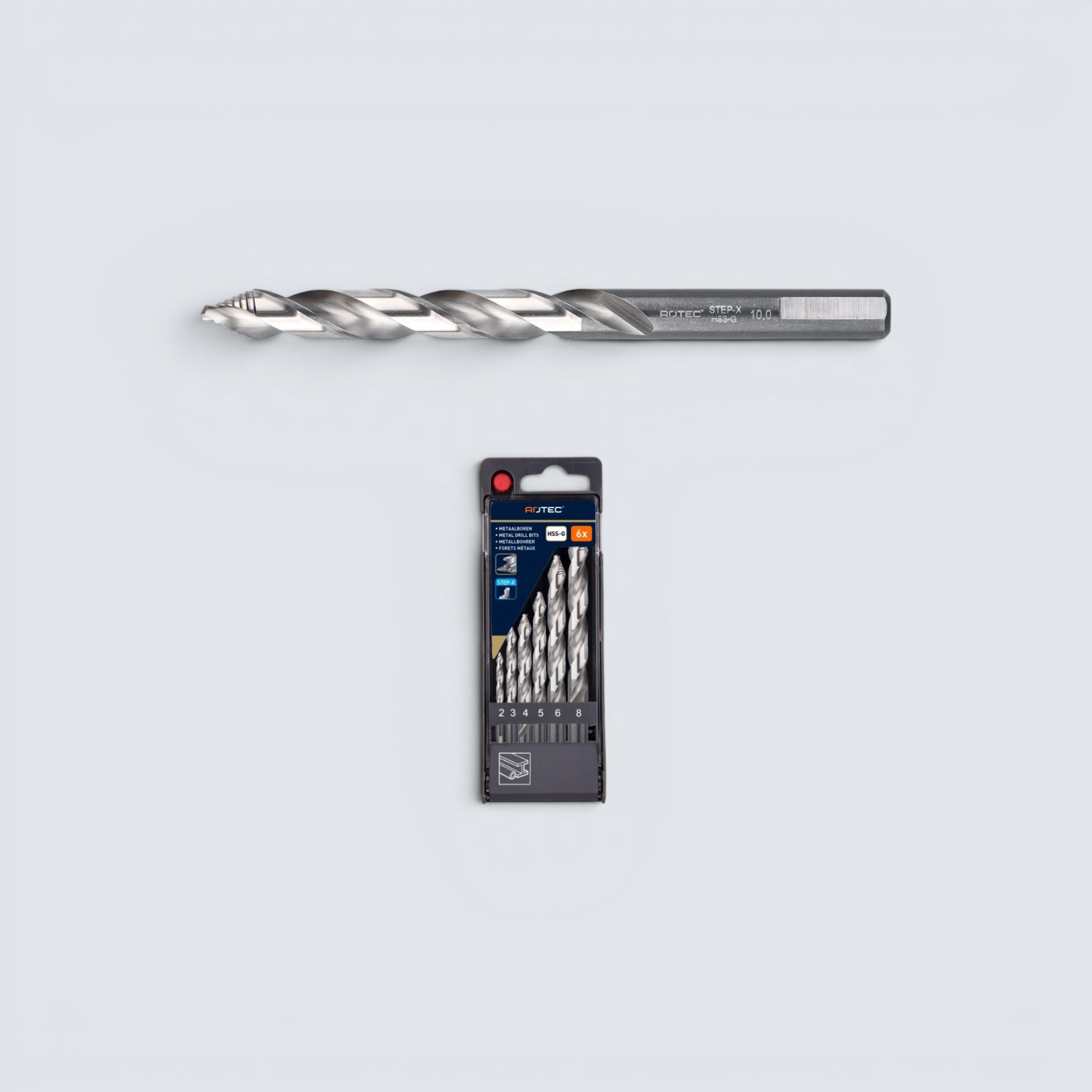

Metal drill bit set | HSS-G | STEP-X | DIN 338 | 6 pieces

In stock 4 items available
SKU: 600166
No reviews
259.00 kr Incl. VAT
Volume discount scale
>500 SEK - 5%
>1000 SEK - 10%
>SEK 2,000 - 15%
Description Safety Data Sheet

Metal drill bit set HSS-G STEP-X 6 pieces | DIN 338 contains precision-ground twist drills with a STEP-X tip for fast and secure drilling starts. The drill bits are manufactured according to DIN 338, and the self-centering STEP-X geometry provides high hole accuracy, reduces the need for pilot drilling, and lowers cutting forces when drilling in sheet metal and thin-walled profiles.

The STEP-X tip is developed for fast and burr-free drilling with low feed force, making the drill bits particularly suitable for cordless drills. The drill bit set is supplied in a practical storage case that protects the bits and provides easy organization.

APPLICATION AREA

The metal drill bit set is used for drilling in sheet metal, structural steel, aluminum, plastic, and hardwood where fast centering, high precision, and clean holes are desired. It is particularly suitable for assembly, maintenance, workshop, and industrial use, as well as for work with cordless drills.

Are you drilling in stainless steel? Watch the video Drilling in stainless steel without burning the drill bit – there we recommend cobalt drill bit HSS-E.

TECHNICAL SPECIFICATIONS

  • Product type: Twist drill bit set
  • Material: HSS-G
  • Standard: DIN 338
  • Tip design: STEP-X
  • Point angle: 118°
  • Helix type: Type N
  • Shank: Cylindrical, from Ø5 mm with 3-flats
  • Surface finish: Silver
  • Number of pieces: 6
  • Content: Ø2.0 • Ø3.0 • Ø4.0 • Ø5.0 • Ø6.0 • Ø8.0 mm
  • Storage: Storage case
  • Delivery unit: Set

FREQUENTLY ASKED QUESTIONS

What is the advantage of the STEP-X tip?
The STEP-X tip provides fast centering, reduces the risk of the drill bit walking, and makes it possible to drill without pilot drilling in many materials.

Which dimensions are included in the set?
The set contains six metal drill bits in the dimensions Ø2.0, Ø3.0, Ø4.0, Ø5.0, Ø6.0, and Ø8.0 mm.

What materials is the drill bit set intended for?
The drill bit set is intended for sheet metal, structural steel, aluminum, plastic, and hardwood.

Are the drill bits suitable for cordless drills?
Yes. The STEP-X geometry is developed for low feed force and fast drilling, which makes the drill bits particularly suitable for cordless drills.
